Spur gear pair¶

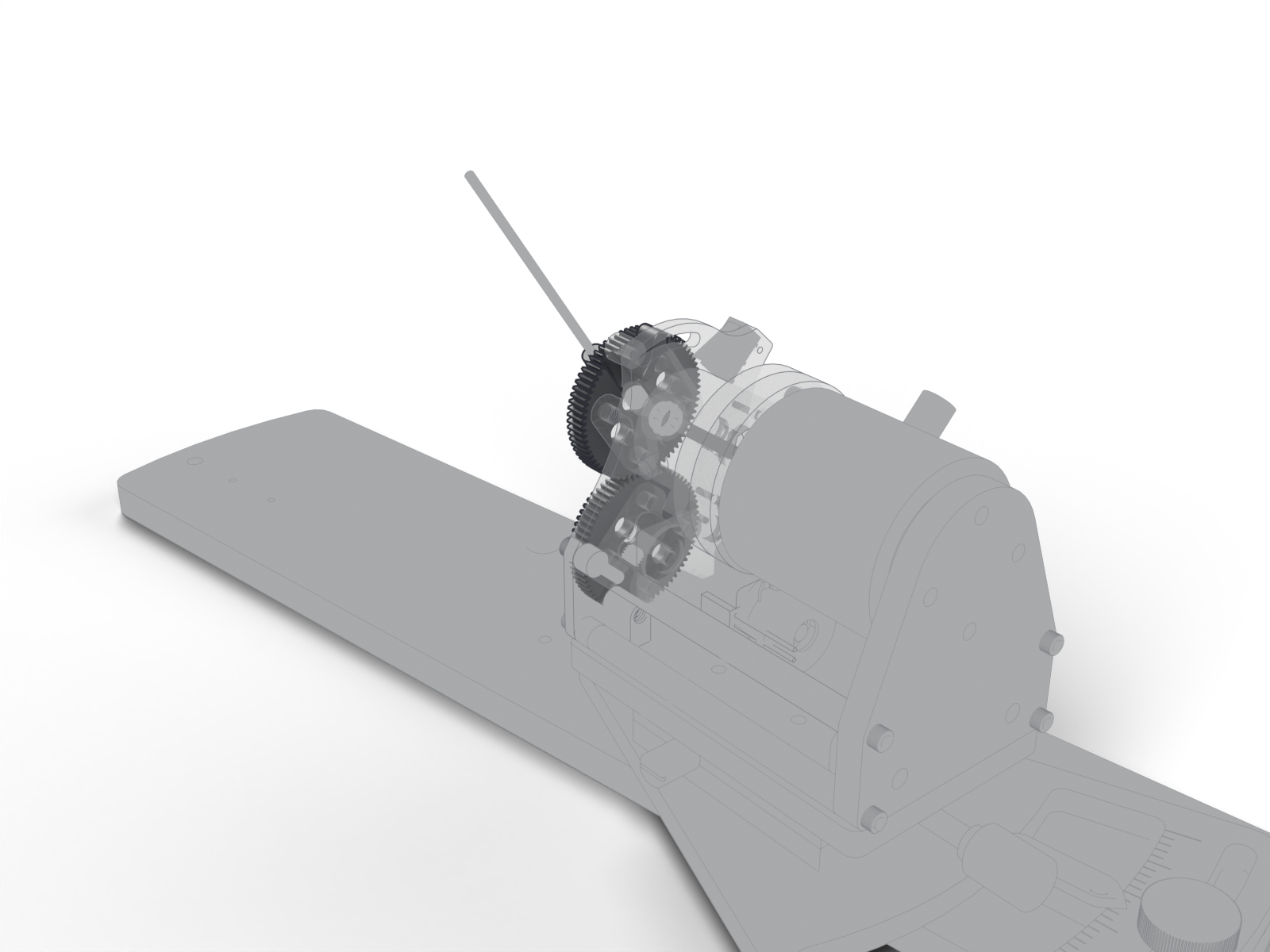

Spur gear pair, the rest of the station ghosted

Driving gear on the motor shaft, driven gear on the lever axis. The mirrored station has its own driven gear. The gear ratio is the number the firmware's angle scaling depends on.


Vendor	Janelia (custom)
Where	one per station
Model nodes	`Spur Gears:`, `DRIVEN SPUR GEAR MIR:`

Firmware¶

Files: mouse-joystick-firm/src/Conversions.hpp

gear ratio and microsteps per lever degree live here

To confirm¶

Tooth counts of the driving and driven gears, to check against src/Conversions.hpp.
