Rig Layout

How a board sits in the rig and what plugs into each of its connectors. One board drives one joystick; a rig has two joysticks, two boards and one pyControl controller. The rig-level cabling, including the camera interface board, the OneBox and the second rig at Peter's desk, is documented with the rig itself in joystick-rig, Hardware/rig-connections.md; this page is the board's side of it.

Placement

Placement study: both boards under the motors of the two-joystick assembly

A placement study from the two-joystick assembly model (mouse-joysticks-mech): the two boards stand on their long edges under the motors, one per station, with the terminal blocks toward the mechanism. The red marks are the connector faces the enclosure has to leave reachable, which is what set the connector positions, the 24 mm BNC spacing and the 7 mm mounting-hardware clearances recorded in connector-access-2026-09-21.md and in the generated connector locations. Where the boards finally mount is an enclosure decision; the model does not fix it.

One Station

Connector What plugs in Cable Detail
J301 RJ-45 pyControl Breakout 1.2, port 1 for the left joystick or port 4 for the right straight Ethernet patch cable; pins 1, 2, 4 and 6 are used pyControl port pinout
J201 USB-C the rig's computer USB-C console and firmware load; also powers the MCU domain
J501 2-pos 5.08 mm 36 V supply two wires, polarity as marked on the silkscreen Power
J1102 4-pos 3.5 mm stepper coils the station's harness Harness pinouts
J1103 5-pos 3.5 mm encoder: supply, return, A and B the station's harness same
J1601 2-pos 3.5 mm limit switch the station's harness same
J1801 2-pos 3.5 mm brake coil two wires Interface map

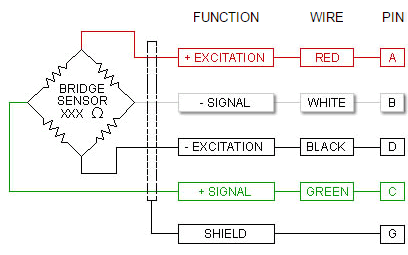

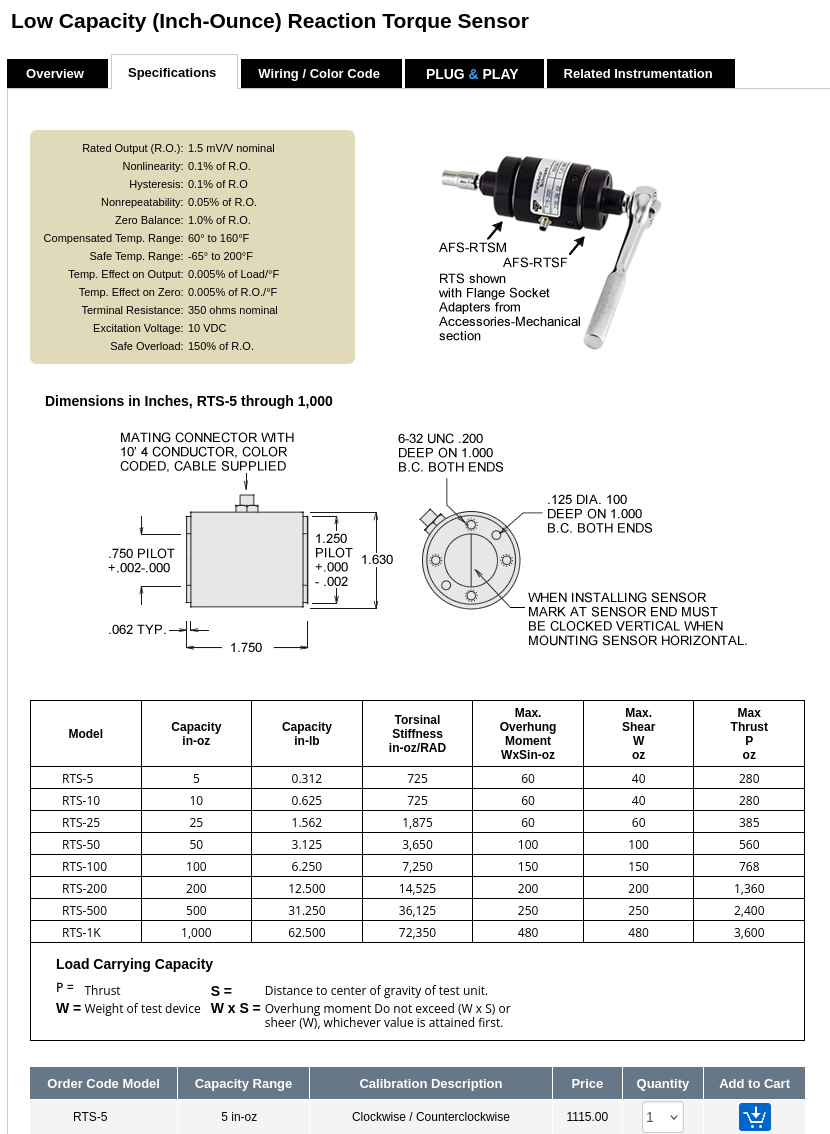

J2001 5-pos 3.5 mm torque sensor bridge: excitation, signal pair, ground and shield five wires, shielded Interface map, sensor specifications, sensor wiring
J1101 BNC angle, 0 to 3.3 V coax to the OneBox or an oscilloscope OneBox analog interface
J901 BNC torque, 0 to 3.3 V coax same
J1301 50-pin FFC instrument port: 32 buffered digital taps for a logic analyzer 0.5 mm FFC to the analyzer adapter Interface map
SW601, SW602 nothing; BOOTSEL and reset buttons

The left and right stations differ only in the harness: the left joystick is a mirror of the right one, so its motor and encoder cables carry two swaps and the boards and firmware stay identical. Label the harnesses.

Two Stations, One Controller

Both boards hang off the same Breakout 1.2, left on port 1 and right on port 4, each over its own RJ-45. The two boards share the 36 V supply and each has its own USB to the computer. The pyControl task talks to one board per session and keeps a heartbeat to it; the board drops its motor rail within 100 ms if the heartbeat stops. A board carries no left or right state, and its serial, the RP2040 flash unique id, is what the firmware's calibration table and the bring-up log key on.
